Container Resource

Why should we limit container resources?

By default, containers are not restricted in their use of the host’s hardware resources. However, if resource limits are not set, a container may excessively consume resources, preventing other containers from functioning properly. Therefore, it is necessary to impose resource limits when needed. In this post, we will conduct stress testing to analyze various constraints.
The resources that can be limited using Docker commands are CPU, Memory. The command to monitor a running container is as follows.

• docker stat or docker stat {container}
  Check the runtime statistics of a running container.

(base) jaoneol@DESKTOP-B7GM3C5:~/stresstest$ docker stats
CONTAINER ID   NAME                CPU %     MEM USAGE / LIMIT     MEM %     NET I/O           BLOCK I/O   PIDS
2c79a399533d   attu                0.01%     84.18MiB / 31.27GiB   0.26%     2.41kB / 0B       0B / 0B     19
30030fa9a5db   milvus-standalone   2.06%     366.4MiB / 31.27GiB   1.14%     7.67MB / 10.8MB   0B / 0B     66
35ff6cc5ea65   milvus-etcd         0.34%     47.88MiB / 31.27GiB   0.15%     10.8MB / 7.65MB   0B / 0B     18
6789d6c91dd5   milvus-minio        0.00%     133.7MiB / 31.27GiB   0.42%     29.6kB / 21.7kB   0B / 0B     25
1b98f1295013   mysql               0.25%     503.2MiB / 31.27GiB   1.57%     1.96kB / 0B       0B / 0B     44

Preparation: Build a image for stress testing

The stress command is commonly used as a tool for generating load, and various options can be checked using stress --help. I will use a few of them.

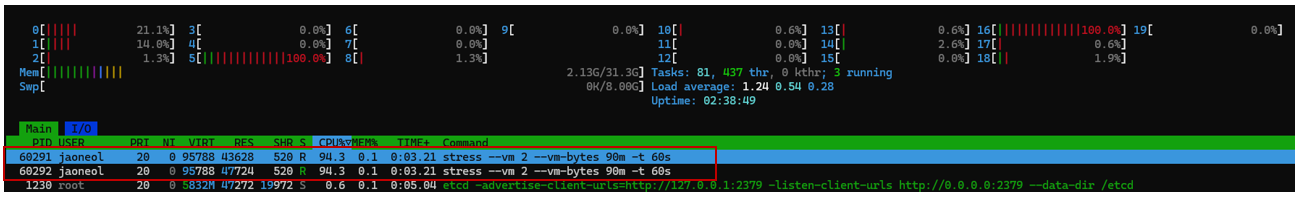

• stress --vm 2 --vm-bytes 90m -t 5s
  Creates two memory-consuming (worker) processes. Each VM worker allocates 90MB of memory.

stress --vm 2 --vm-bytes 90m -t 5s

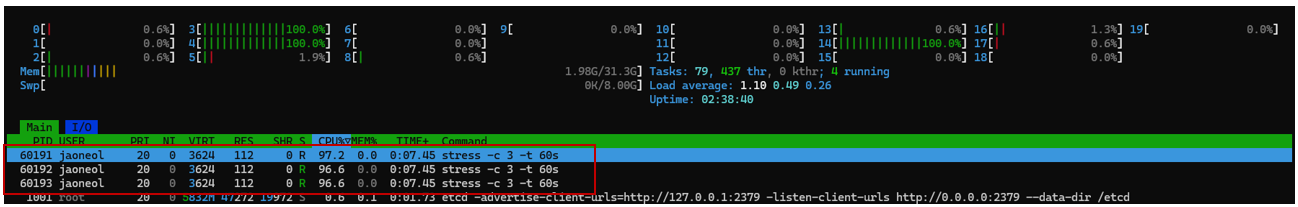

• stress -c 3 -t 5s or stress --cpu 3 --timeout 5s
  Creates two CPU worker processes to generate CPU load.

stress -c 3 -t 5s

I create the following Dockerfile for stress testing, build a image, and run a container

FROM debian

LABEL maintainer="ds2man@example.com"
LABEL version="1.0"

RUN apt-get update && \
    apt-get install -y stress && \
    rm -rf /var/lib/apt/lists/*

    CMD ["stress", "-c", "2"]

(base) jaoneol@DESKTOP-B7GM3C5:~/stresstest$ docker build -t mystress .
(base) jaoneol@DESKTOP-B7GM3C5:~/stresstest$ docker images
REPOSITORY            TAG                            IMAGE ID       CREATED          SIZE
mystress              latest                         044b247aa916   49 seconds ago   117MB
(base) jaoneol@DESKTOP-B7GM3C5:~/stresstest$

Memory Limitation Options

Option	Meaning
--memory, -m	Specifies the maximum amount of memory a container can use.
--memory-swap	Configures the swap memory area the container can use. Memory + Swap. By default, it is set to twice the memory value.
--memory-reservation	Sets a soft limit that is lower than the --memory value.
--oom-kill-disable	Protects the process from being killed by the OOM (Out of Memory) Killer.

Swap memory refers to a space that utilizes disk storage to supplement insufficient memory when the physical RAM is fully occupied, and additional memory is needed. Since disk space is used like memory, it can be considered virtual memory. However, because swap memory utilizes the hard disk instead of actual physical memory, its speed is significantly slower compared to RAM.

• docker run -d -m 512m nginx:lastest
  The maximum memory allocated to the nginx container is set to 512MB.
  However, since swap is not disabled, it can use up to 1024MB (twice the limit).
• docker run -d -m 1g --memory-reservation 500m nginx:lastest
  The nginx container is allowed to use a maximum of 1GB of memory, with a guaranteed minimum of 500MB.
• docker run -d -m 200m --memory-swap 300m nginx:lastest
  The container can use up to 200MB of memory and 300MB of swap (which utilizes disk space as virtual memory).
  A common misconception is that the total available memory is 500MB, but in reality, the total swap-inclusive memory usage is 300MB. That is, WAP 300MB = 200MB memory + actual SWAP 100MB.
• docker run -d -m 200m --oom-kill-disable nginx:lastest
  If the Linux kernel detects insufficient physical memory, it triggers the Out-of-Memory (OOM) killer, terminating containers that consume excessive virtual memory.
  This command prevents the container from being killed by OOM.

# When creating the `stress` container, 100MB of memory is allocated, including swap. Then, a memory load of 90MB is generated for 5 seconds → Works as expected.
(base) jaoneol@DESKTOP-B7GM3C5:~/stresstest$ docker run -m 100m --memory-swap 100m mystress:latest stress --vm 1 --vm-bytes 90m -t 5s
stress: info: [1] dispatching hogs: 0 cpu, 0 io, 1 vm, 0 hdd
stress: info: [1] successful run completed in 5s

# When creating the `stress` container, 100MB of memory is allocated, including swap. Then, a memory load of 150MB is generated for 5 seconds → Does not work as expected.
(base) jaoneol@DESKTOP-B7GM3C5:~/stresstest$ docker run -m 100m --memory-swap 100m mystress:latest stress --vm 1 --vm-bytes 150m -t 5s
stress: info: [1] dispatching hogs: 0 cpu, 0 io, 1 vm, 0 hdd
stress: FAIL: [1] (425) <-- worker 7 got signal 9
stress: WARN: [1] (427) now reaping child worker processes
stress: FAIL: [1] (431) kill error: No such process
stress: FAIL: [1] (461) failed run completed in 0s

# When creating the `stress` container, swap is omitted, and memory is set to 100MB, allowing a maximum allocation of 200MB. Then, a memory load of 150MB is generated for 5 seconds. → Works as expected.
(base) jaoneol@DESKTOP-B7GM3C5:~/stresstest$ docker run -m 100m mystress:latest stress --vm 1 --vm-bytes 150m -t 5s
stress: info: [1] dispatching hogs: 0 cpu, 0 io, 1 vm, 0 hdd
stress: info: [1] successful run completed in 5s

# When creating the `stress` container, swap is omitted, and memory is set to 100MB, allowing a maximum allocation of 200MB. Then, a memory load of 250MB is generated for 5 seconds. → it triggers the Out-of-Memory (OOM) killer, terminating containers that consume excessive virtual memory.
# But!, Using `--oom-kill-disable=true`, The container is protected from being killed by OOM (Out of Memory).
(base) jaoneol@DESKTOP-B7GM3C5:~/stresstest$ docker run -d -m 100M --oom-kill-disable=true  mystress:latest stress --vm 1 --vm-bytes 250m -t 5s
a5edc5fbe316897821d80146b25057eba2832eb913cf69d48f5c02b62d868439
(base) jaoneol@DESKTOP-B7GM3C5:~/stresstest$

CPU Resource Limitation Options

Option	Meaning
--cpus	Specifies the number of CPU cores allocated to the container. --cpus="1.5" allows the container to use up to 1.5 CPU cores.
--cpuset-cpus	Specifies the CPU cores that the container can use. The CPU index starts from 0. --cpuset-cpus=0-4 allows the container to use CPU cores 0 to 4.
--cpu-share	Sets the CPU share using a base value of 1024. --cpu-share 2048 allows the container to use twice the default CPU resources.

• docker run -d --cpus=".5" ubuntu:24.04
  When there are four CPU cores, they are numbered as Core 0, 1, 2, and 3. Using one core fully corresponds to 100% usage. Setting cpus=1 allows the container to fully utilize one of the cores (Core 0, 1, 2, or 3).
  Setting cpus=0.5 allows the container to use 50% of a randomly selected core among the four cores.
• docker run -d --cpuset-cpus 0-3 ubuntu:24.04
  Specifies the CPU cores that the container can use. For example, setting 0-4 allows the container to access cores from 0 to 4.
• docker run -d --cpu-shares 2048 ubuntu:24.04
  Defines the relative weight of CPU resource allocation. By default, all application containers use a weight of 1024. If a container is assigned 2048, it will receive twice the CPU resources compared to a container with the default setting.

# When creating the `stress` container, 1 CPU is allocated. Then, 100% load is applied to a single CPU. → Works as expected.
(base) jaoneol@DESKTOP-B7GM3C5:~/stresstest$ docker run --cpuset-cpus 1 -d mystress:latest stress --cpu 1 -t 5s
f3f63524e4aba1d7861f68a1109c0d5a3df92895e0f3e06339ef5bd4c987371e

# When creating the `stress` container, CPUs 0 and 1 are allocated. Then, 100% load is applied to a single CPU, causing load on either CPU 0 or CPU 1. → Works as expected.
(base) jaoneol@DESKTOP-B7GM3C5:~/stresstest$ docker run --cpuset-cpus 0-1 -d mystress:latest stress --cpu 1 -t 5s
f18f0102283150f3f1b41d3b968113c13f0a09e6c1d1228137ccb91624d50a9f
(base) jaoneol@DESKTOP-B7GM3C5:~/stresstest$
